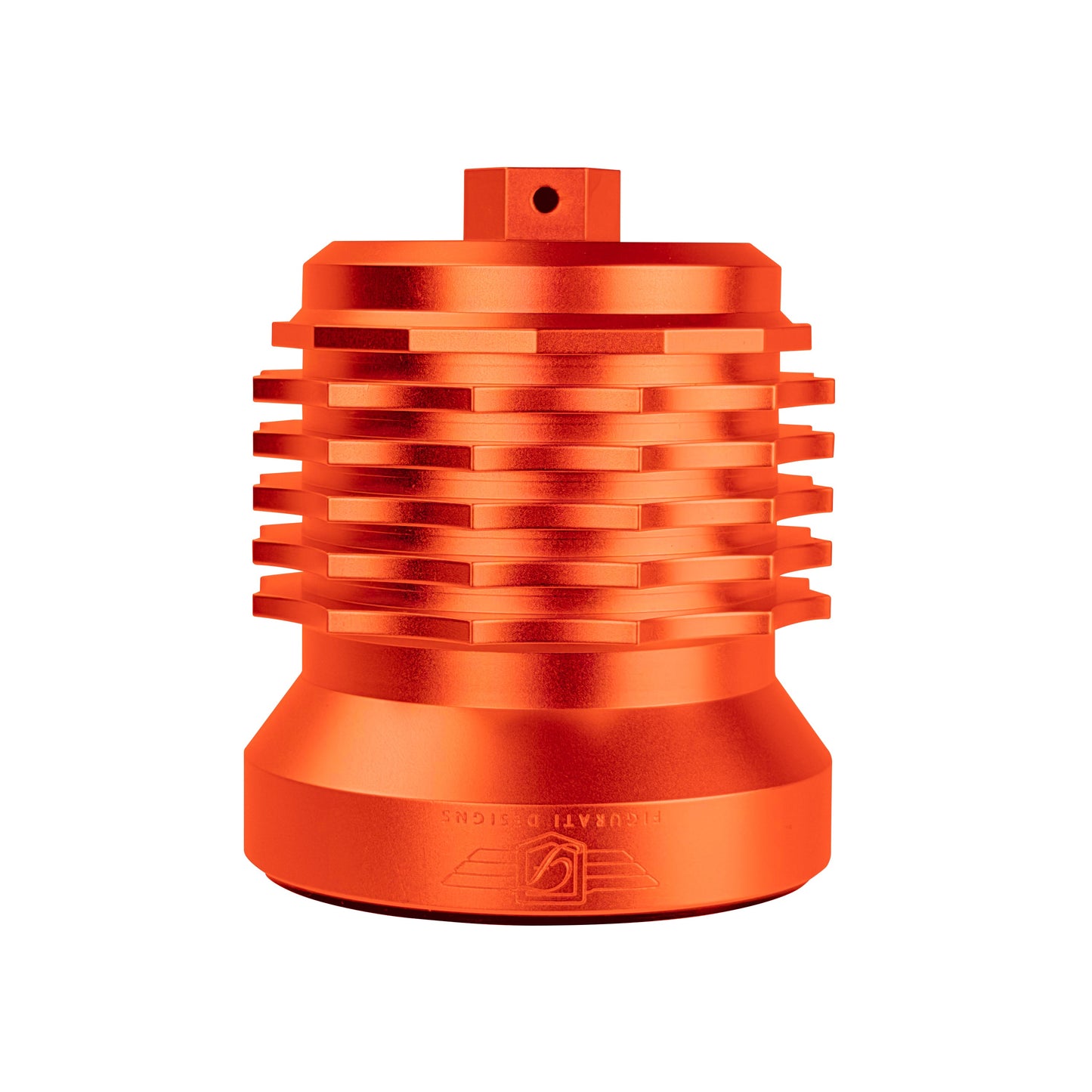

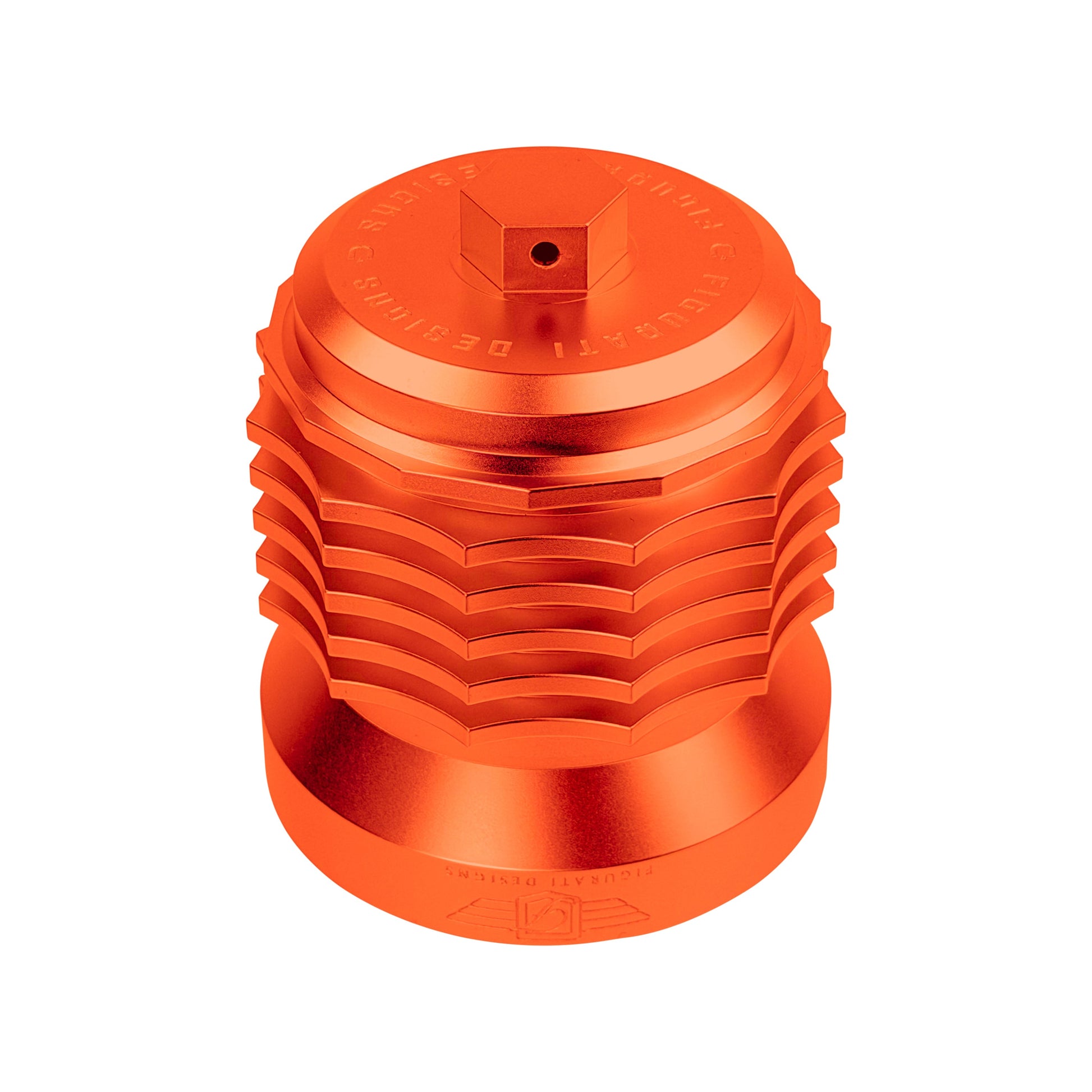

Performance Magnetic Oil Filter for Harley-Davidson Pan America (1984-2026)

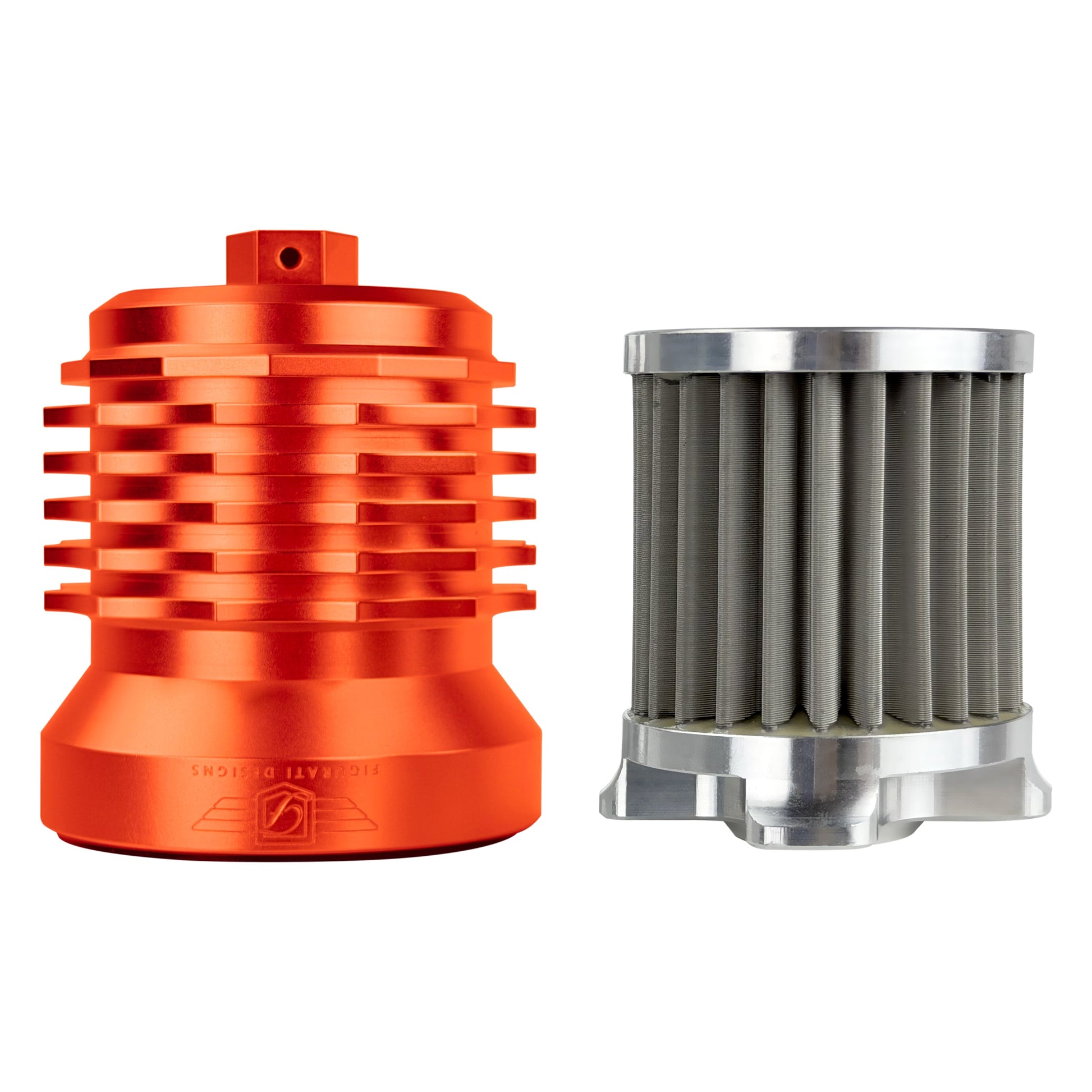

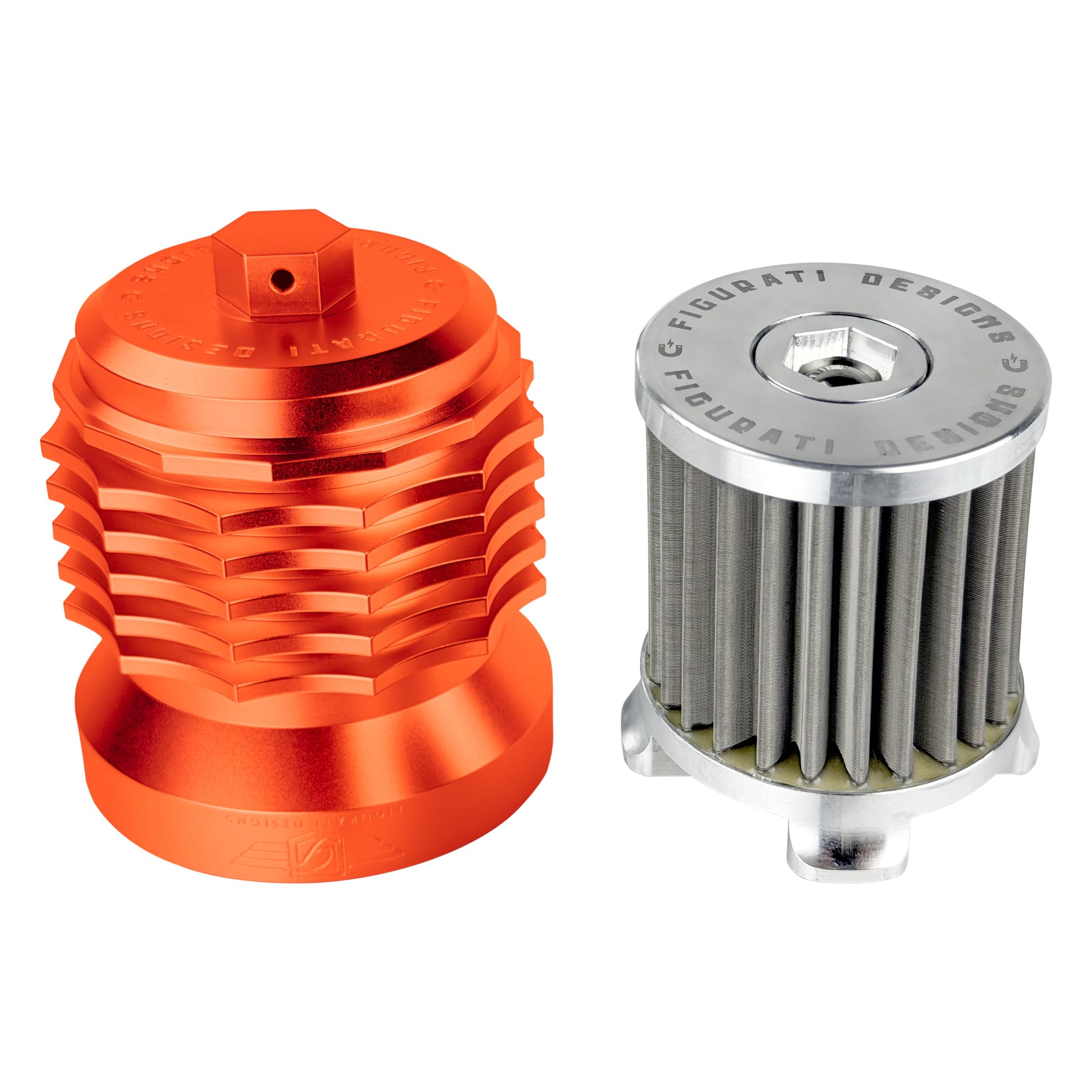

Filter more impurities than traditional paper filters with a reusable performance magnetic oil filter engineered for Harley-Davidson motorcycles. Its high-grade 6063 lightweight, high-strength anodized aluminum housing combines superfine stainless-steel mesh, 4 external pre-filtering magnets, and a powerful internal neodymium rare-earth magnet to capture particles down to 25 microns.

With a flow rate up to 10 times greater than traditional paper filters, this cleanable and environmentally friendly oil filter helps support efficient oil circulation while reducing replacement waste.

FEATURES

• 6063 lightweight, high-strength anodized aluminum housing
• Powerful internal neodymium magnetic filtration
• 4 external pre-filtering magnets
• Superfine stainless-steel mesh filtration
• Cleanable and reusable components
• Environmentally friendly design
• Flow rate up to 10 times greater than traditional paper filters

SPECS

• Filter level: 25 microns
• Filter material: Stainless steel and aluminum
• Internal magnet strength: 2800 gauss
• External magnet strength: 2700 gauss each, 4 magnets
• Pressure relief valve threshold: 15 PSI

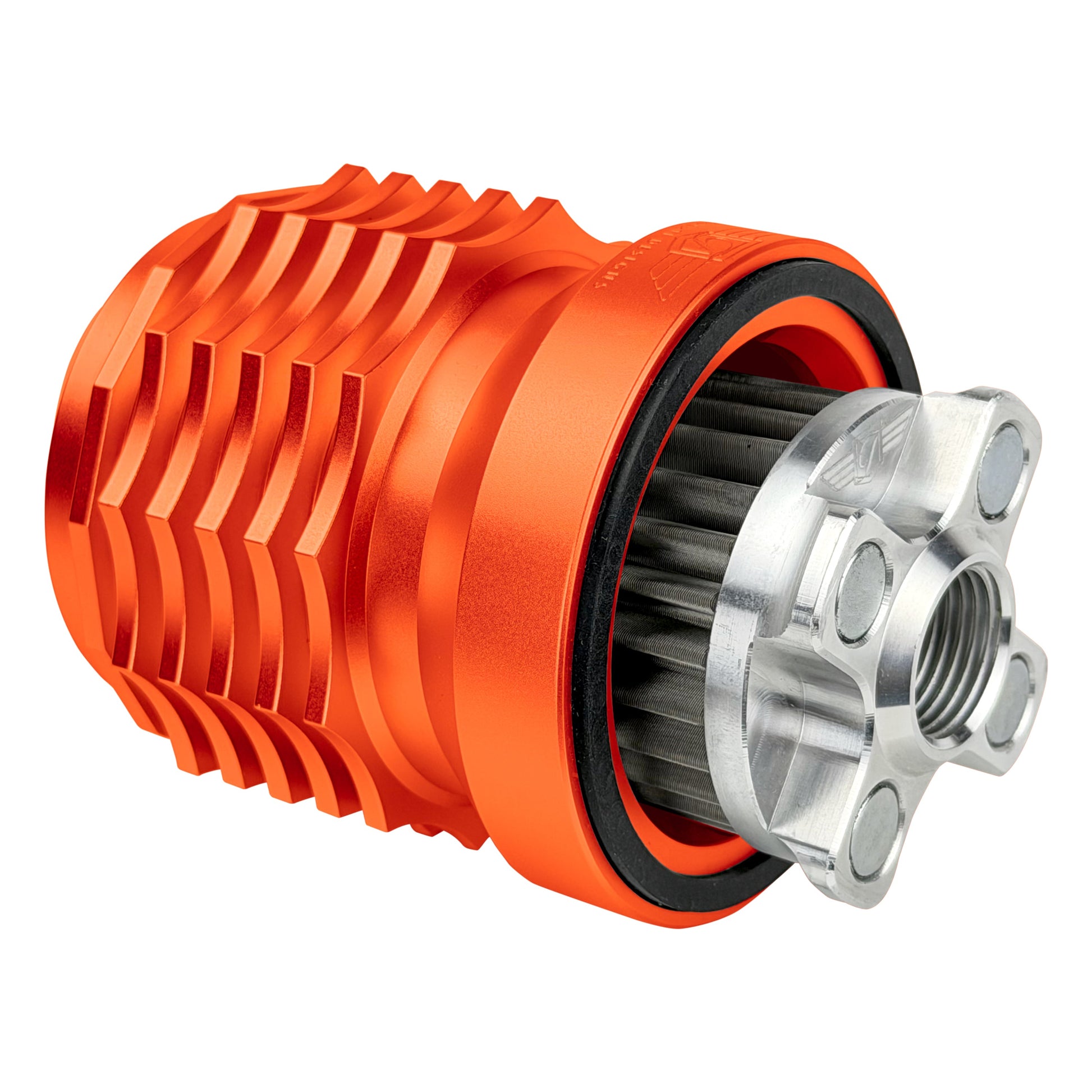

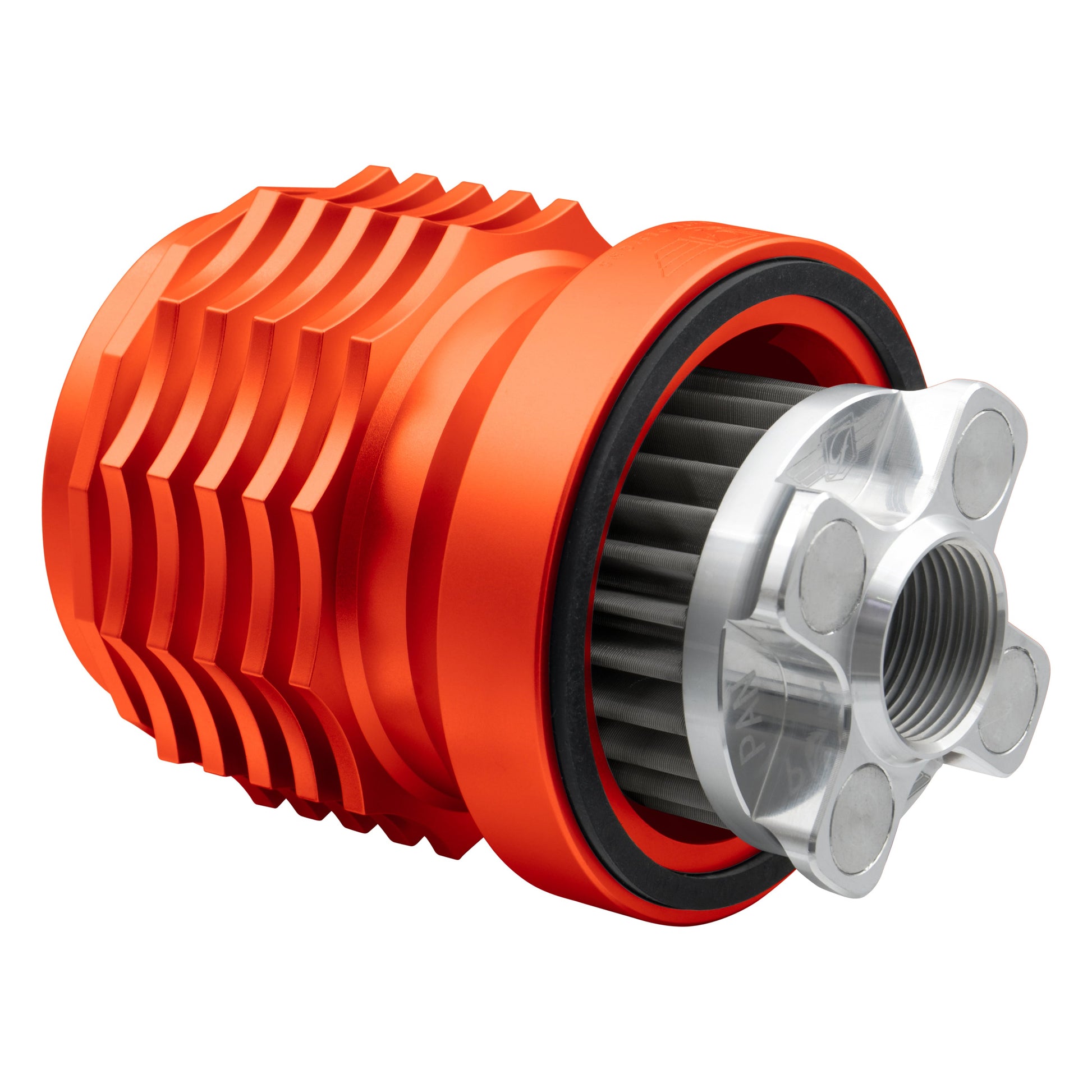

CLEANING INSTRUCTIONS

1. Unscrew the top nut.
2. Remove the ball bearing, spring, and 2800 gauss center/bypass magnet.
3. Wipe down the housing and components with a microfiber cloth.
4. Replace the components.
5. Reinstall the filter.

FITMENT NOTE

Fits Harley-Davidson models equipped with Evolution, Twin Cam, and Milwaukee-Eight engines, with applications spanning model years 1973–2025, including Sportster, Dyna, Softail, Touring, CVO, Trike, V-Rod, and Pan America models. Compatible applications include models such as Breakout, Fat Bob, Fat Boy, Heritage, Low Rider, Road Glide, Road King, Street Glide, Softail Standard, Sportster, Tri Glide, Ultra Limited, and Wide Glide. Please verify your motorcycle’s model, engine, oil filter specifications, and fitment before ordering.
